TBR-C Linear motion slide unit support

TBR C
Part Number Shaft
Diameter(mm)

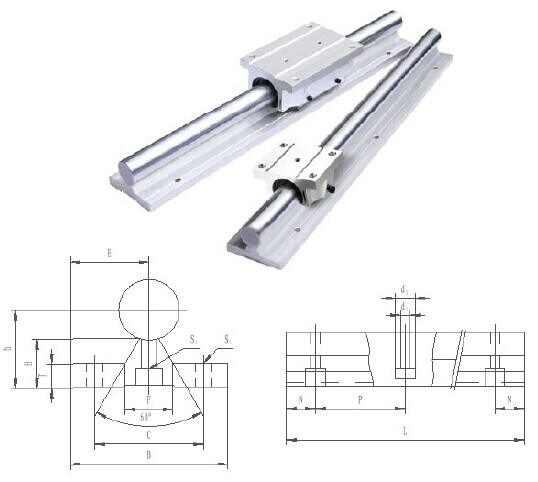

Main dimensions and Mounting dimensions (mm) Weight(g)
E h B H T F C S1 S2 d1×d2×i
TBR-C16 16 25 22.14 50 14.96 6 18.71 37 φ5.5 5.5×9.5×5.4 1.1
TBR-C20 20 27.5 29.01 55 19.37 8 18.96 40 φ5.5 5.5×9.5×5.4 1.8
TBR-C25 25 32.5 31.97 65 20.14 10 20 45 φ6.6 6.6×11×6.5 2.05
TBR-C30 30 37.5 36.52 75 22.45 12 22.96 55 φ6.6 6.6×11×6.5 2.8

Support Rail Stand Lengths and Dimensions

Part Number SBR-C16 SBR-C20 SBR-C25 SBR-C30
 Standard Length(L) 190 340 250 450
240 640 450 850
640 940 850 1250
940 1240 1250 1450
N 20 20 25 25
P 150 150 200 200
MAX.Length 6000 6000 6000 6000

Exceeds the maximum length need docking,please shou the drawing.
