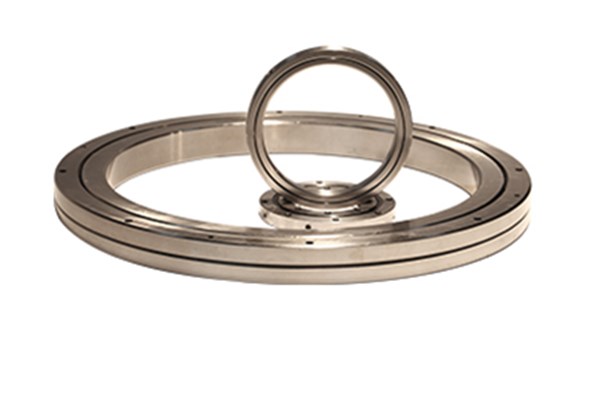

XU Crossed Cylindrical Roller Bearings

Inner Diameter: 40-384mm Outer Diameter: 112-646mm Width: 22-86mm Weight: 1.4-115kg.

Crossed roller bearings,cylindrical rollers are arranged crosswise,with each roller perpendicular to the adjacent roller,in a 90°V groove,separated from each other by a spacer retainer.This design allows just one bearing to receive loads in all directions including radial,axial and moment loads.Since the cross-roller ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial robots,swiveling tables of machining centers,rotary units of manipulators,precision rotary tbales,medical equipments,measuring instruments and IC manufacturing machines.

Bearing Features:

  1. High precision: Precision level can be P4,P2
  2. High rigidity: This series bearings all with preload
  3. High load capacity: can bear axial,radial and tipping load
  4. Small size: this kind bearing with small size can save space for machine.

Identification number

Main dimensions

Basic load rating (axial

Basic load rating (radial

weight

Inner diameter

d

(mm)

outer diameter

D

(mm)

Roller pitch circle diameter

dp

(mm)

Width

H

(mm)

фLa

mounting holes

na

фLi

mounting holes

ni

Ca

Kn

Coa

Kn

Cr

Kn

Cor

Kn

Kg
XU050077 40 112 77 22 97 6-ф6.6 56 6-M8 22.4 29 14.3 14.2 1.4
XU060094 57 140 94 26 120 6-ф9 70 6-M8 32.5 37.5 20.7 18.4 2.4
XU060111 76.2 145.79 111 15.87 133.1 8-ф6.9 88.9 8-ф6.9 36 44.5 22.8 21.5 1.2
XU080120 69 170 120 30 148 6-ф9 90 6-M8 56 53 35.5 26 4
XU080149 101.6 196.85 149.6 22.22 177.8 16-ф6.9 115.8 16-ф6.9 63 66 40 32.5 3.6
XU120179 124.5 234 179 35 214 12-ф11 144.5 12-ф11 118 179 75 88 7
XU120222 140 300 222 36 270 12-M16 170 12-ф18 133 275 85 131 12
XU160260 191 329 260 46 305 20-ф14 215 20-ф14 212 350 135 173 16
XU080264 215.9 311 264 25.4 295.3 12-ф8.7 231.8 12-ф8.7 85 117 54 57 6.9
XU160405 336 474 405 46 450 30-ф14 360 30-ф14 270 550 172 270 25
XU080430 380 480 430 26 462 20-ф9 398 20-M10 110 280 70 138 12
XU300515 384 646 515 86 598 18-ф26 432 18-ф26 720 1370 455 670 115

Application area:

Precision rotation working table,manipulator rotate joints,medical machine,measuring equipments etc.
