PMI Linear Guideway MSC.MSD Series Miniature Type

PMI Linear guide MSC.MSD

PMI Linear Guideway MSC.MSD Series Miniature Type

Features
MSC stows with Gothic-arch groove and designed to contact angle of 45° which enables it to bear an equal load
in radial, reversed radial and lateral directions. Furthermore, ultra compact and low friction resistance design is
suit to compact equipment. The lubrication route makes the lubricant evenly distribute in each circulation loop.
Therefore,the optimum lubrication can be achieved in any installation direction, and this promotes the
performance in running accuracy, service life, and reliability.

Characteristics
• Four-way Equal Load   • Smooth Movement with Low Noise

• Interchangeability    •Ultra Compact   • Ball Retainer

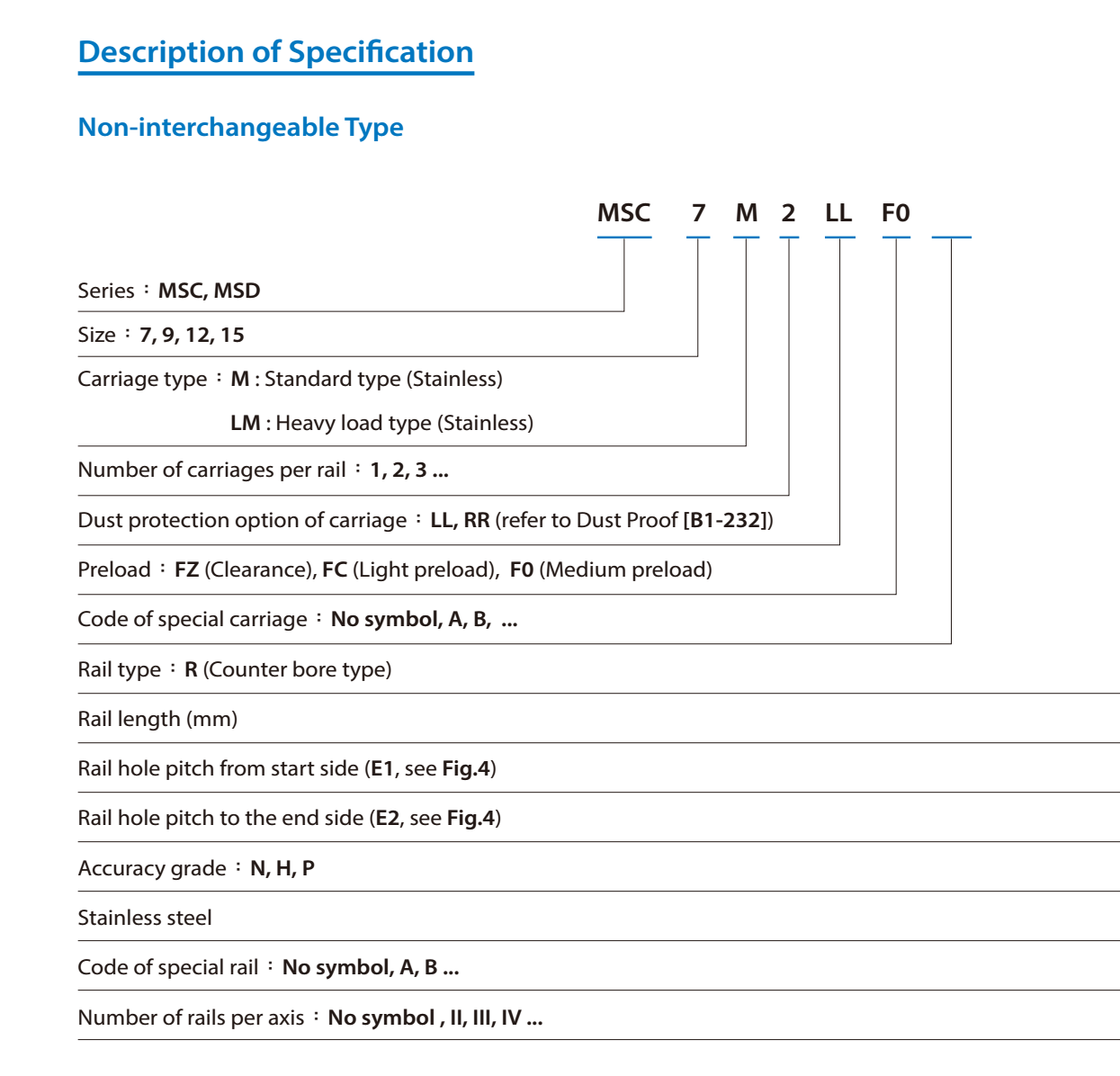

MSC M/LM Model No.

MSC 7M
MSC 7LM
MSC 9M
MSC 9LM
MSC 12M
MSC 12LM
MSC 15M
MSC 15LM

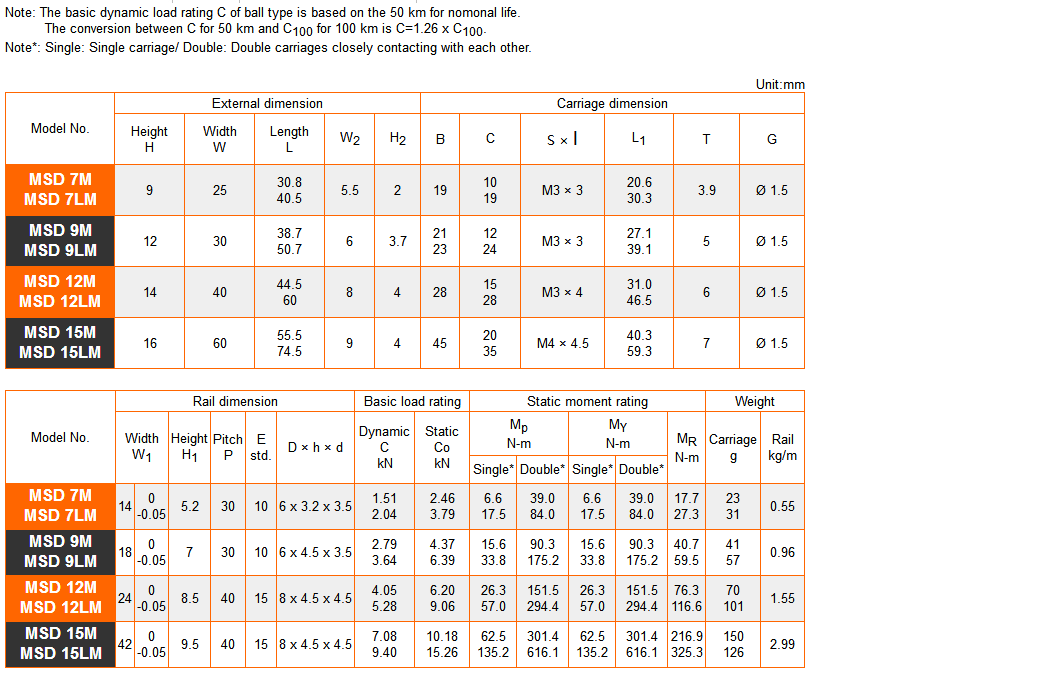

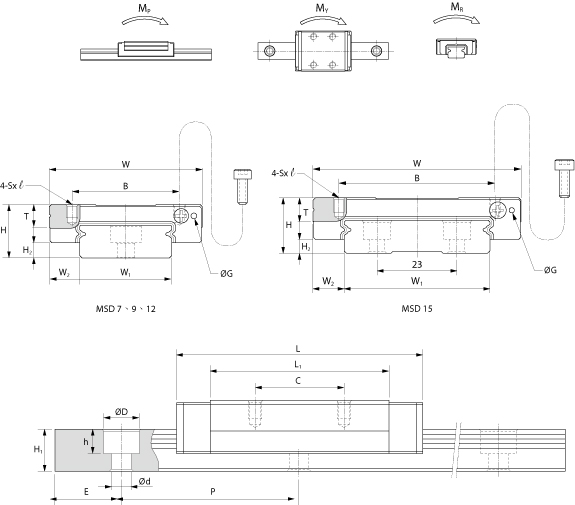

MSD M/LM Model No.

MSD 7M
MSD 7LM
MSD 9M
MSD 9LM
MSD 12M
MSD 12LM
MSD 15M
MSD 15LM

• Four-way Equal Load

• Smooth Movement with Low Noise

• Interchangeability

•Ultra Compact

• Ball Retainer
