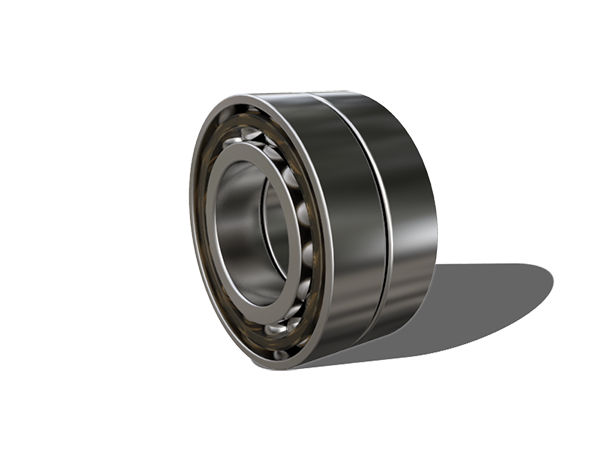

High Speed Use Series Single row Angular Contact Ball Bearings
| Inquiry | Boundary dimensions(mm) | Basic load ratings(kN) | |||
| d | D | B | rs min | Cr | |
| 7824C | 120 | 150 | 16 | 1 | 35 |
| 7813C | 65 | 85 | 10 | 0.6 | 14.1 |
| 7822C | 110 | 140 | 16 | 1 | 34.5 |
| 7812C | 60 | 78 | 10 | 0.3 | 13.4 |
| 7821C | 105 | 130 | 13 | 1 | 24.1 |
| 7819C | 95 | 120 | 13 | 1 | 23.4 |
| 7834C | 170 | 215 | 22 | 1.1 | 76 |
| 7811C | 55 | 72 | 9 | 0.3 | 13.1 |
| 7820C | 100 | 125 | 13 | 1 | 23.5 |
| 7830C | 150 | 190 | 20 | 1.1 | 60.5 |
| 7809C | 45 | 58 | 7 | 0.3 | 7.6 |
| 7818C | 90 | 115 | 13 | 1 | 22.7 |
| 7832C | 160 | 200 | 20 | 1.1 | 62 |
| 7810C | 50 | 65 | 7 | 0.3 | 7.9 |
| 7816C | 80 | 100 | 10 | 0.6 | 15.1 |
| 7828C | 140 | 175 | 18 | 1.1 | 47.5 |
| 7808C | 40 | 52 | 7 | 0.3 | 6.05 |
| 7817C | 85 | 110 | 13 | 1 | 22.1 |
| 7815C | 75 | 95 | 10 | 0.6 | 14.8 |
| 7807C | 35 | 47 | 7 | 0.3 | 5.8 |
| 7805C | 25 | 37 | 7 | 0.3 | 5.05 |
| 7806C | 30 | 42 | 7 | 0.3 | 5.35 |
| 7814C | 70 | 90 | 10 | 0.6 | 14.5 |
| 7826C | 130 | 165 | 18 | 1.1 | 47 |
