PMI MSB Series Compact Type

PMI Linear guide MSB

PMI Linear Guideway MSB Series Compact Type

Features
The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSB series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.
The patent design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.

Characteristics
• Compact, Four-way Equal Load • Self Alignment Capability
• Smooth Movement with Low Noise • Interchangeability

Dimension

MSB-TE MSB-E MSB-LE
MSB-TE MSB E MSB LE
This type offers the installation either from top or bottom side of carriage. All dimensions are same as MSB-TE except the length is longer, which makes it more rigid. All dimensions are same as MSB-E except the length is longer, which makes it more rigid.
MSB-TS MSB-S MSB-LS
MSB-TS  MSB-S  MSB-LS
Square type with smaller width and can be installed from top side of carriage. All dimensions are same as MSB-TS except the length is longer, which makes it more rigid. All dimensions are same as MSB-S except the length is longer, which makes it more rigid.

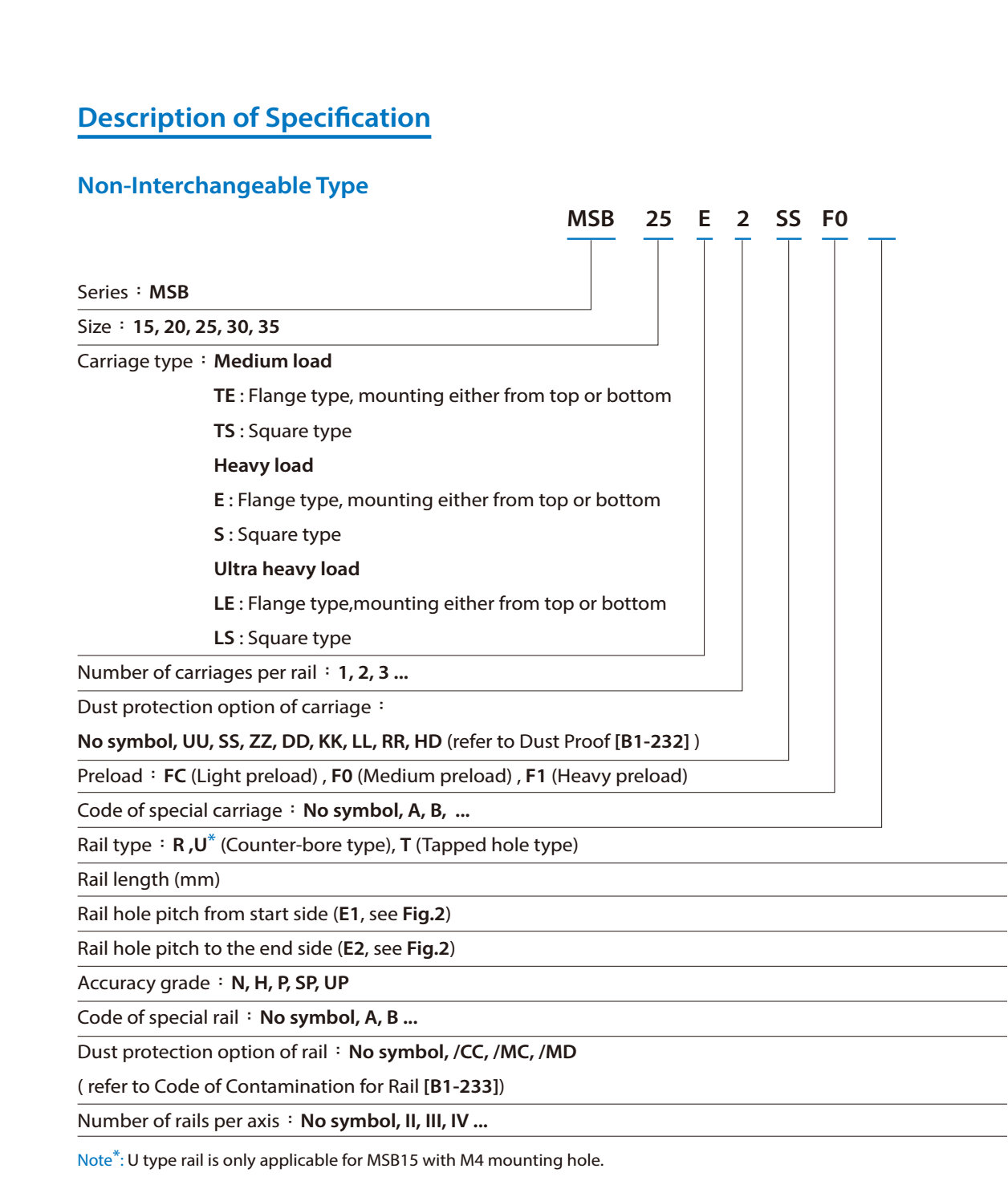

MSB TE/E Model No.

MSB 15TE
MSB 15E
MSB 20TE
MSB 20E
MSB 25TE
MSB 25E
MSB 30TE
MSB 30E
MSB 35TE
MSB 35E
MSB 35LE

MSB TS/S   Model No.

MSB 15TS
MSB 15S
MSB 20TS
MSB 20S
MSB 25TS
MSB 25S
MSB 30TS
MSB 30S
MSB 35TS
MSB 35S
MSB 35LS

• Compact, Four-way Equal Load

• Self Alignment Capability

• Smooth Movement with Low Noise

• Interchangeability
