SYK MBL series Motor Bracket

Structure and Features

The Nut Bracket is standardized for standard-stock Ball Screws provided with finished shaft
ends. It is designed to be secured directly on the table using bolts. Since the height is low, it
can be mounted on the table only using bolts.

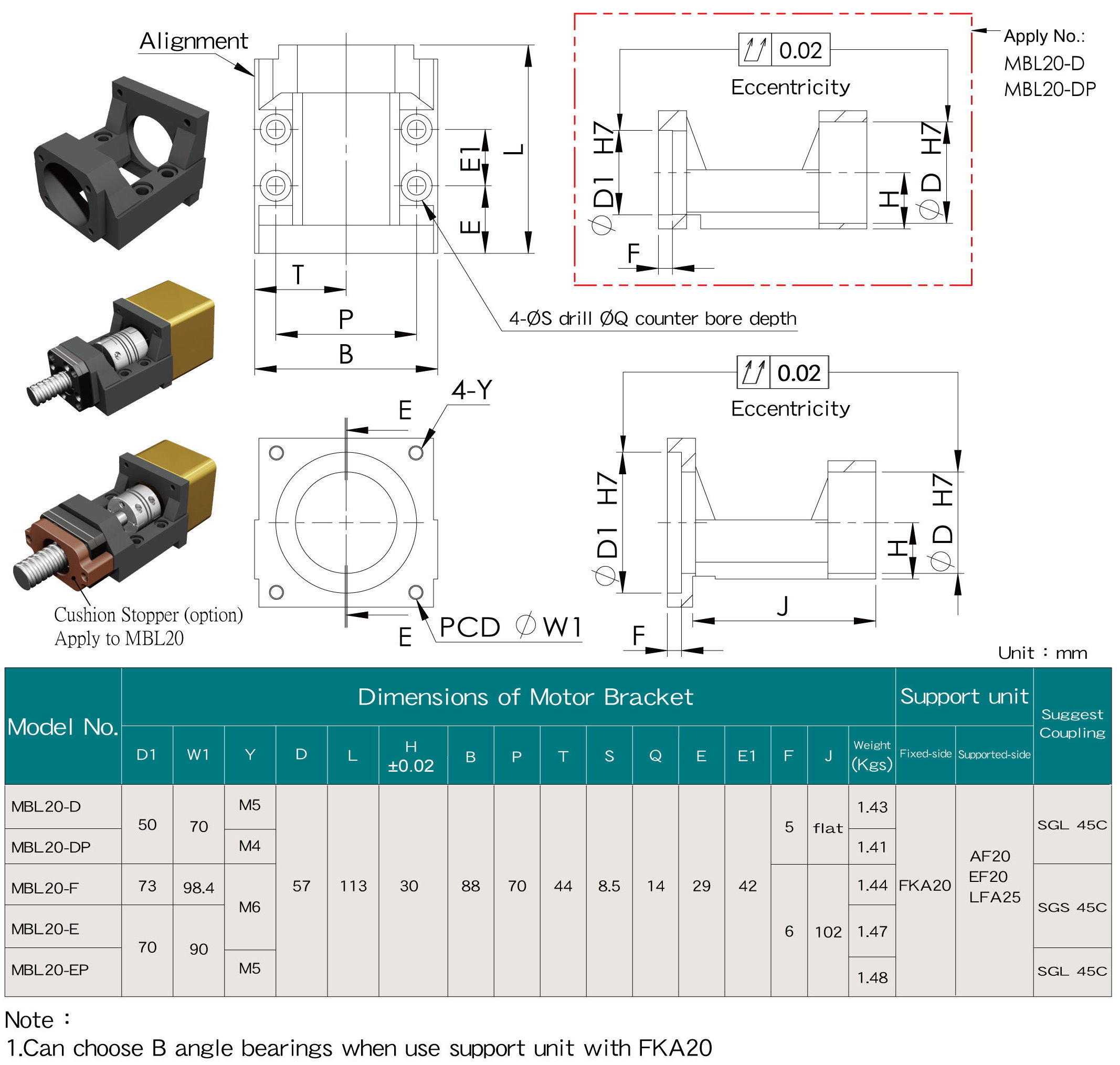

MBL20 Motor bracket

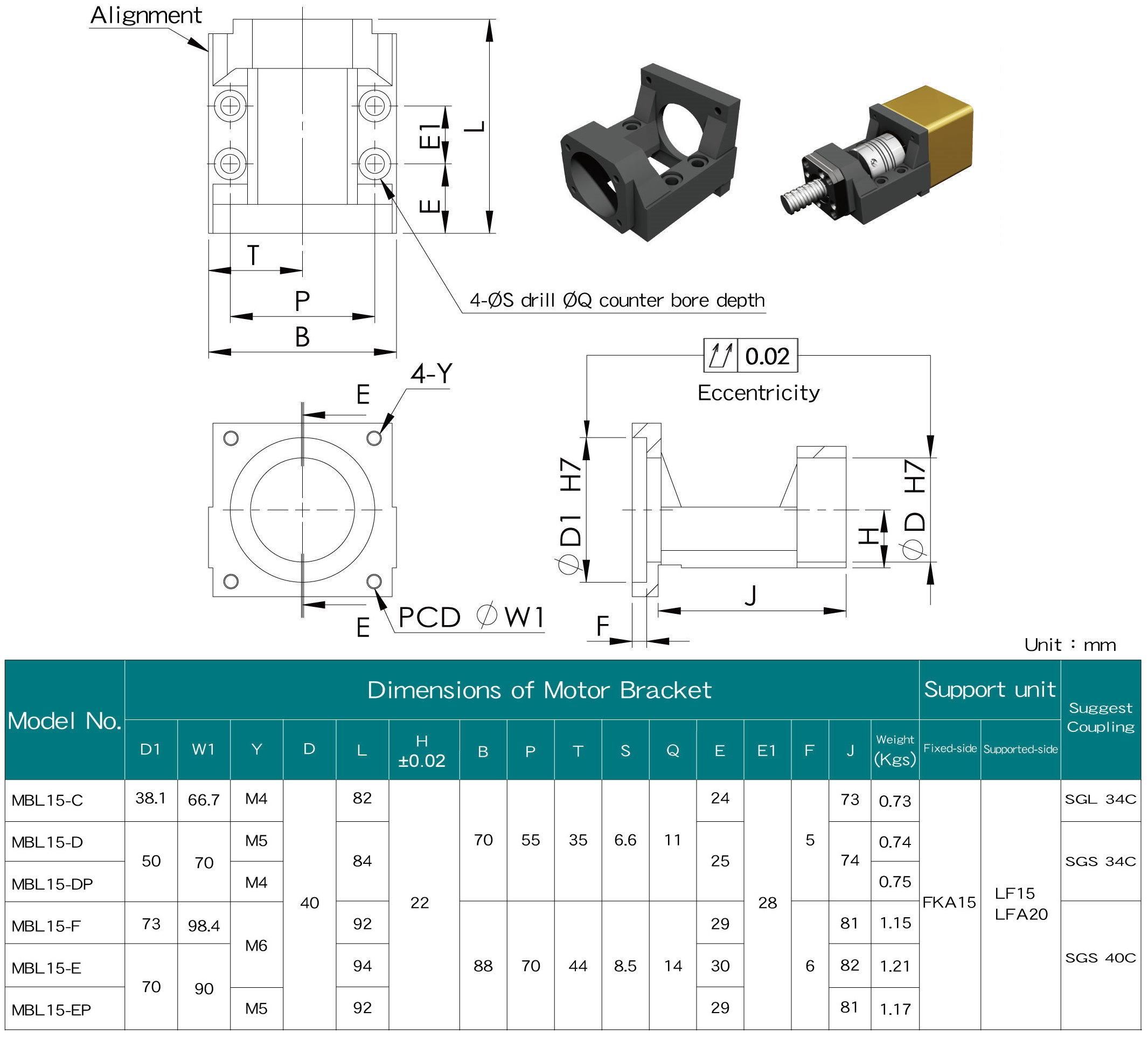

MBL15 Motor bracket

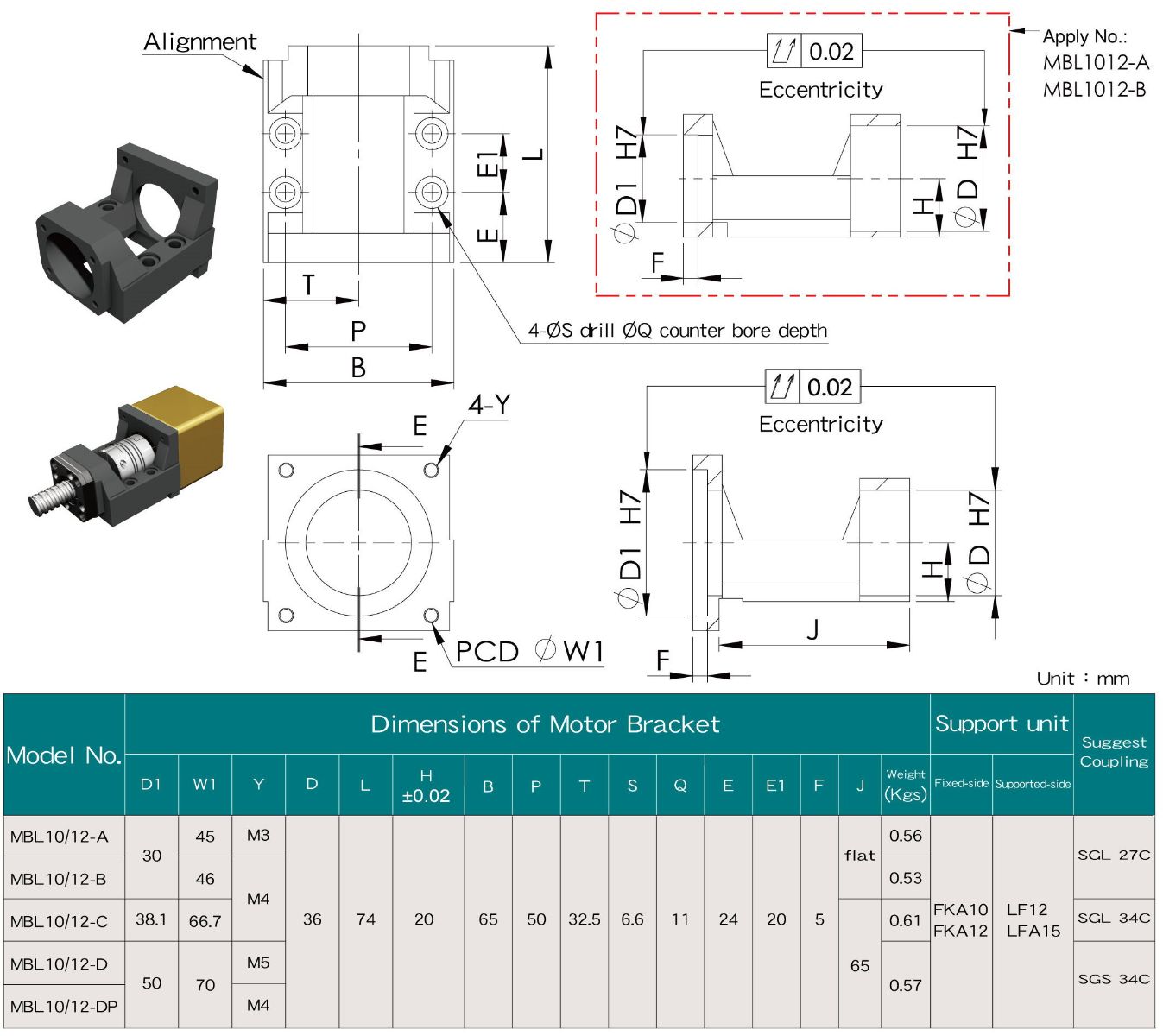

MBL10_12 Motor bracket

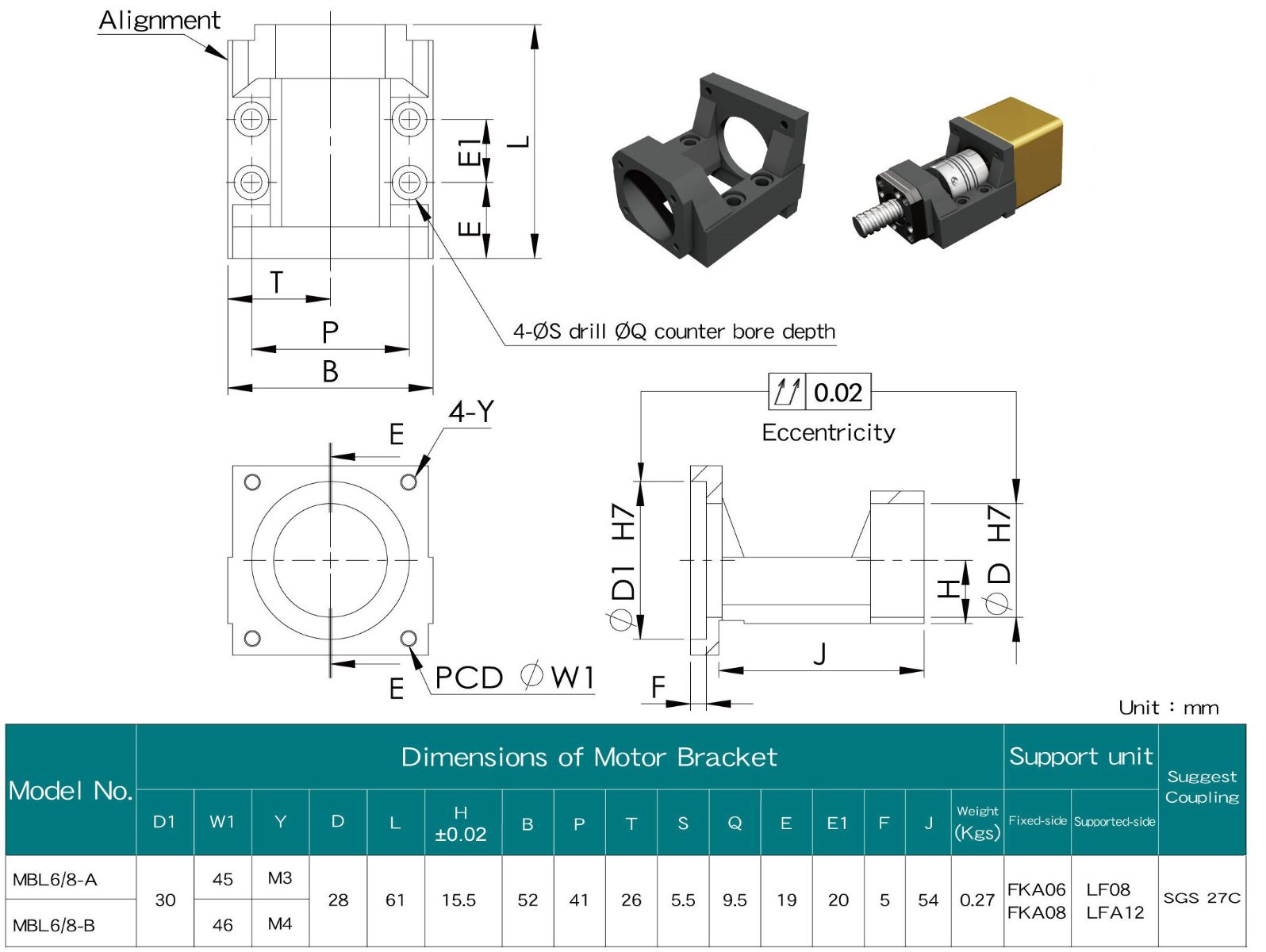

MBL6_8 Motor bracket
