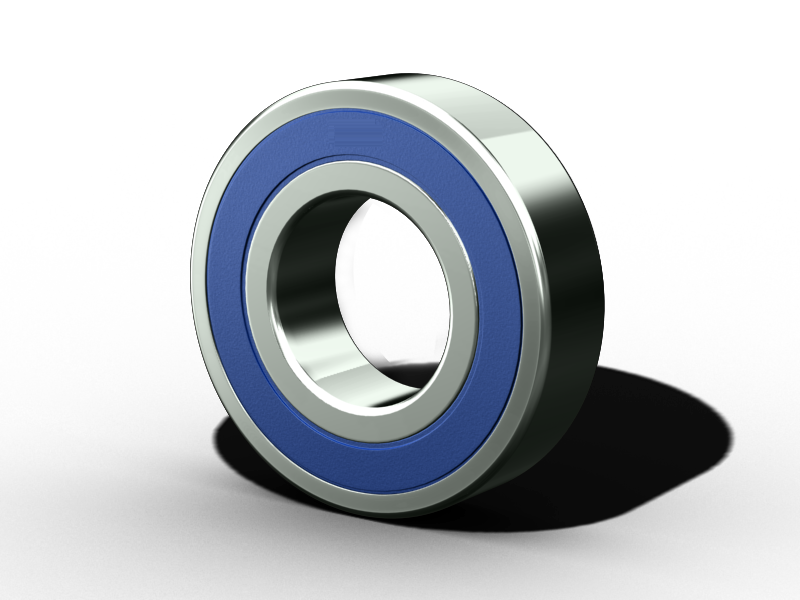

Single row shields , seals type DEEP GROOVE BALL BEARINGS

Single row Shields seals type deep groove ball bearings

68/Z,ZZ,RS,2RS Series

Inquiry Boundary dimensions(mm) Basic load ratings(kN)
d D B rs min Cr
6800 10 19 5 0.3 0.3
6801 12 21 5 0.3 0.3
6802 15 24 5 0.3 0.3
6803 17 26 5 0.3 0.3
6804 20 32 7 0.3 0.3
6805 25 37 7 0.3 0.3
6806 30 42 7 0.3 0.3
6807 35 47 7 0.3 0.3
6808 40 52 7 0.3 0.3
6809 45 58 7 0.3 0.3
6810 50 65 7 0.3 0.3
6811 55 72 9 0.3 0.3
6812 60 78 10 0.3 0.3
6813 65 85 10 0.6 0.6
6814 70 90 10 0.6 0.6
6815 75 95 10 0.6 0.6
6816 80 100 10 0.6 0.6
6817 85 110 13 1 1
6818 90 115 13 1 1
6819 95 120 13 1 1
6820 100 125 13 1 1
