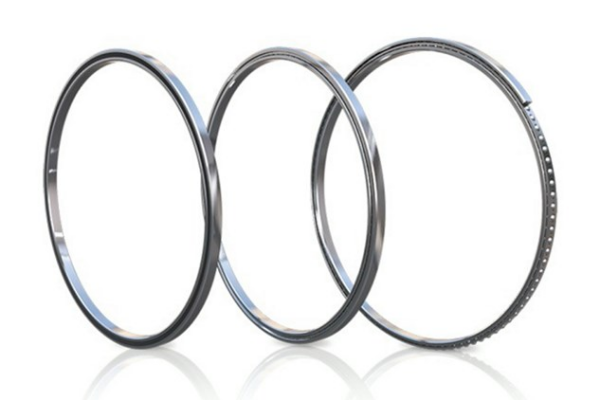

Thin section bearings, as the name implies, are a specialized class of rolling element bearings defined by a unique dimensional characteristic: a very small cross-sectional profile relative to their bore diameter. While a standard bearing’s cross section scales up significantly with a larger bore, a thin section bearing maintains an exceptionally slender and nearly constant cross section, regardless of whether the inner ring diameter is four inches or forty inches. This fundamental design principle unlocks a world of engineering possibilities, making them indispensable in applications where space, weight, and precision are paramount.
The defining feature of a thin section bearing is its square cross section. In these bearings, the radial cross section—the distance from the inner raceway to the outer raceway—is remarkably small and remains constant across a wide range of bore sizes. This is typically expressed as a series. For example, a bearing in the “KA” series may have a cross section of just 0.1875 inches, while a larger “KB” series is only 0.25 inches. This design yields a significant reduction in weight, often up to 85% less than a conventional bearing of comparable bore diameter. The reduced mass is not merely a shipping convenience; it translates directly to lower inertia, allowing for faster acceleration and deceleration in dynamic systems, which is critical for precision machinery.
Thin section bearings are available in three primary configurations: radial contact (deep groove), angular contact, and four-point contact. The radial contact type handles moderate radial loads and some thrust. The angular contact type is designed for combined loads, offering higher capacity in one direction. The four-point contact bearing is a versatile hybrid, capable of supporting radial, bidirectional thrust, and moment loads simultaneously, thanks to a single split inner raceway that contacts the balls at four points. This makes it an excellent, space-saving alternative to pairing two angular contact bearings.
Applications for these bearings are found where every millimeter matters. In robotic arms, they provide smooth, low-friction rotation for joints. In medical imaging equipment like CT scanners, their large, open bore and minimal cross section allow the heavy gantry to rotate precisely around a patient. Within astronomical observatories, thin section bearings support massive telescopes, enabling them to track celestial objects with minimal stiction. They are also crucial in semiconductor manufacturing, satellite mechanisms, and military turrets.
Areswin Precison Machinery Company can supply all kinds of thin section bearings with cheap price and good quality. The thin section bearing can replace with Kaydon thin section bearing.
Please contact us if you need thin section bearing:Inch Size Thin Section Open Bearings Supplier | Thin Section Bearings
In conclusion, the thin section bearing is a masterpiece of minimalist engineering. By decoupling the cross section from the bore diameter, it provides the robust, precise rotational support of a large bearing without the excessive weight and space penalty. For any design engineer tasked with creating compact, high-performance, and lightweight rotational systems, the thin section bearing is not just a component—it is an enabling technology.
